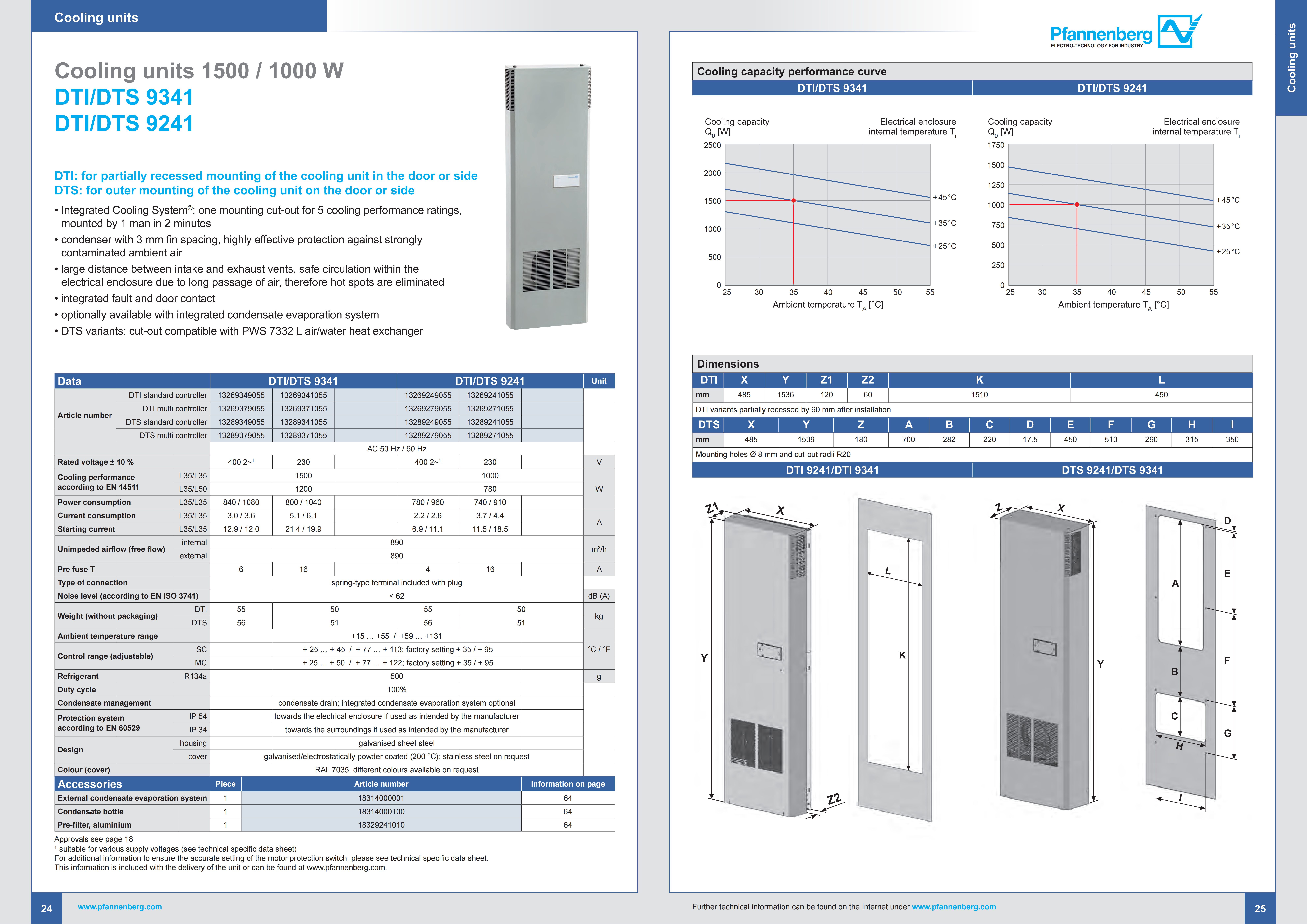

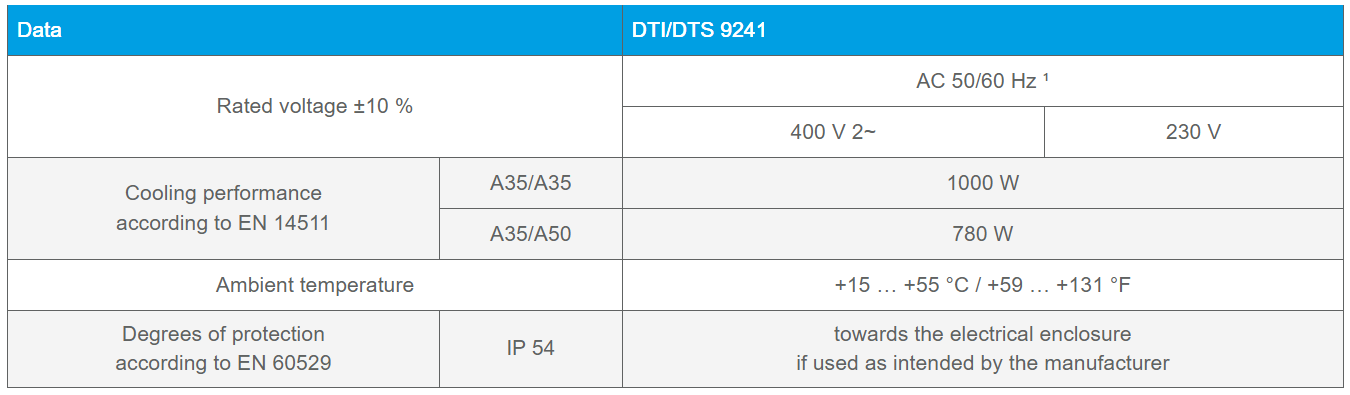

DTI/DTS 9241

Cooling units 1000 W

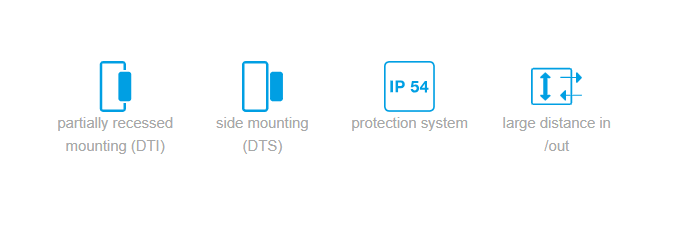

DTI: for partially recessed mounting in the door or side
DTS: for outer mounting on the door or side

• Integrated Cooling System©: one mounting cut-out for 5 cooling performance ratings, mounted by 1 man in 2 minutes.
• Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
• Large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated.
• Integrated fault and door contact.
• Optionally available with integrated condensate evaporation system.

DTI/DTS 9341

Cooling units 1500 W

DTI: for partially recessed mounting in the door or side
DTS: for outer mounting on the door or side

• Integrated Cooling System©: one mounting cut-out for 5 cooling performance ratings, mounted by 1 man in 2 minutes.
• Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
• Large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated.
• Integrated fault and door contact.
• Optionally available with integrated condensate evaporation system.
• DTS variants: cut-out compatible with PWS 7332 L air/water heat exchanger.
